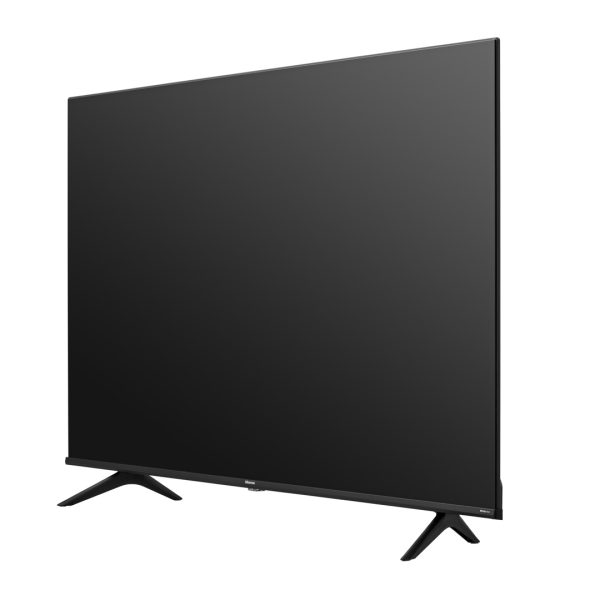

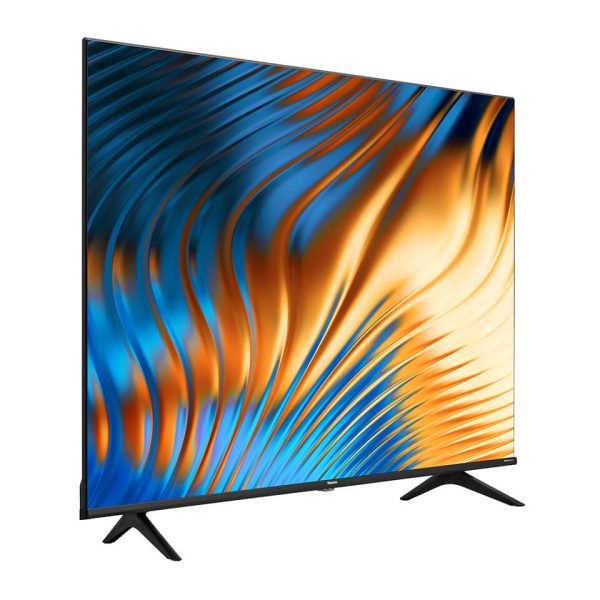

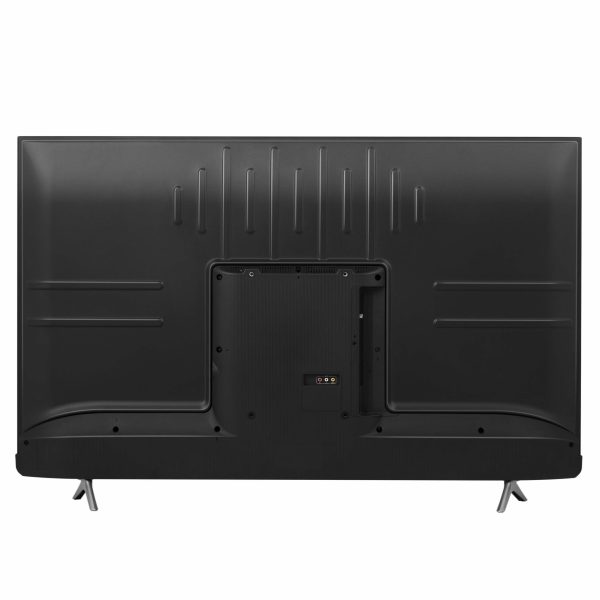

Hisense 70″ UHD 4K TV

R12499,00

Factory model	70A53FXVT
Factory	Qingdao
Description	178cm (70″ ) Direct LED Television
Document
Specifications form version	HA220704
Circulation	Restricted, internal use only
Status	Confirmed
Revision number	1
Date	7/4/2022
Issued by	Al
Image display
Panel manufacturer	Hisense
Panel model	LCM:HD700X1U91-BY, Open Cell :CHOT CV700U2-T01
Active display area, horizontal dimension	1550.6mm
Active display area, vertical dimension	872.2mm
Screen size (rounded to nearest integer)	178 cm
Screen size (rounded to nearest integer)	70 inch
Display technology	LCD/ LED lit
Backlight source	Direct LED
Resolution (Horiz x Vert)	3840X2160
Screen curvature radius	–
Colour depth	8bit+FRC
Image refresh frequency	60Hz
Smooth motion rate	120
3D image	–
Typical brightness of white	300cd/m2
Native contrast ratio	4000 : 1
Viewing Angle (Horiz / Vert)	178/ 178 Degrees
Quantum dot	No
Wide colour gamut	No
KSF phosphor	No
UHD Premium	No
Response Time	8ms
Connectivity
RF- Radio frequency input	1
AV input	1
AV output	0
USB interface type 3.0 (Qty / List….)	0
USB interface type 2.0 (Qty / List ….)	2/ USB1, USB 2
Optical digital audio output (SPDIF)	1
Earphone jack	1
HDMI ports
HDMI inputs	3
HDMI type 8K@60Hz	No
HDMI type 4K@60Hz with HDCP version 2.2	HDMI 1, HDMI 2,HDMI3
HDMI 2.1 compliant input	NA
Enhanced Audio Return Channel ( eARC)	No
CEC- Consumer Electronics Control via HDMI	Yes
Smart TV
Ethernet port (RJ45 connector)	1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..}	a, b, g, n, ac
Wi-Fi bands	2.4/5.0GHz
DLNA compliance	Yes
Bluetooth / BT version	Yes / 5.0
Anyview (Screen mirroring)	Yes
Catch-up TV services	Iview, SBS on Demand, 7 Plus, 9 Jumpin (Tenplay available from Playsore)
UHD (4k) streaming	Yes
Installed Applications {List ……}	Netflix/Youtube/Prime Video……
Freeview Plus – HbbTV 2.0	No/HbbTV 1.6.1
Web browser [Chrome \| Opera \| Other]	Odin
Digital TV reception
Television system (DVB-T / DVB-T2)	Yes / Yes
Video decoder (MPEG2 / MPEG 4)	Yes / Yes
AC3 Surround sound decoder	Yes
AS 4599.1 compliance	Yes
AS 4933.1 compliance	Yes
LCN- Logical channel number and DTV Service name support	Yes
Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX	Yes / Yes / Yes
Subtitles	Yes
RF Signal strength indicator	Yes
RF Signal quality indicator	Yes
RF Bit error rate indicator	Yes
EPG- Electronic programming guide, 7 days for all services	Yes
Audio description (vision impairment aid)	Yes
Parental rating lock	Yes
Analogue TV reception
Colour-Sound systems in VHF band	PALSECAM, B/G, D/K, I
Colour-Sound systems in UHF band	PALSECAM, B/G, D/K, I
Stereo sound decoder {A2, Nicam, ….}	No
Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX	No/ No/ No
Subtitles	Yes
Image processing
Backlight control	No
Light sensing	No
Dynamic backlight control	No
Frame rate control	No
Variable Refresh Rate (VRR)	No
FreeSync	No
Auto Low Latency Mode for VRR	Yes
Local dimming/ controllable zones	No
Zoom function settings	Automatic/ 16:9/ 4:3/ Panoramic/ Movie Zoom/ Direct
1:1 Pixel mapping	No
HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI)	No / No / No
HDR system (HDR10 / HDR10+ / Dolby Vision)	Yes/ No / YES
HLG (Hybrid Log-Gamma) for HDR	YES
HEVC (H.265) decoder	Yes
Dual image (PIP / POP)	No/ No
Motion enhancement and compensation (MEMC)	No
Input lag	NO
Sound
Audio power output per channel	15Watt
Number of speakers (Tweeter / Midrange / Woofer)	2 /0 /0
Automatic volume level (AVL)	Yes
Audio equalizer	Yes
Dolby Digital	Yes
Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}	DTS Virtual X
Lip-sync adjustment	Yes
Features
On/off timer	Yes
Power off if no signal	Yes
Sleep timer	Yes
Program lock	Yes
OSD transparency control	Yes
User interface	VIDAA U5
Software version OSD indication	Yes
Legal requirements: Disclaimer / Acceptance of Terms	Yes / Yes
Favourite channels list	Yes
Electronic point of sales (E-POS)	Yes
OTA- Over the air software updates	Yes
Voice command	Yes
Screen mirroring {Miracast, Anyview Cast, …}	Anyview Cast
Smartphone remote control application {Rremote Now, …}	Yes
Replaceable demo video for Store mode	Yes
Remote control via serial port	No
USB media player
Personal Video Recorder	Yes
Time Shift	Yes
DTV Recording (EPG scheduling / start from Standby )	Yes / Yes
DivX decoder	No
MPEG4 (H.264) / H.265 decoder	Yes / Yes
DMP- Digital media player content (Music / Video / Photos / Text)	Yes / Yes / Yes / No
DMP Auto-play	No
DMP for UHD content via USB	Yes
DMP File allocation table (FAT / FAT32 / exFAT / NTFS)	Yes / Yes / No / Yes
PVR File allocation table (FAT / FAT32 / exFAT / NTFS)	Yes / Yes / No / Yes
Hotel lock
Protected Hotel lock submenu (Password / fixed code)	No / Yes
Clone function for programs, sound and image settings.	Yes
Sub-menu lock, including tuning lock	Yes
Keyboard lock	Yes
Maximum volume lock	Yes
Power on volume	Yes
Power on, apply default sound/image settings	No
Power on source selection	Yes
Power on RF channel selection	Yes
Power on mode (On / Standby / Last)	Yes / Yes / Yes
Inputs access (Enable / Disable)	Yes
Hardware
Processor / Cores	MT9602EAATBA / 4
Dual Tuner	No
Colour (Front bezel, rear, stand)	Black / Black / Black
Speakers mounted in enclosure	Yes
Mains power switch	No
Swivel base	No
Compact packaging	Yes
Supply range [Voltage / Frequency ]	100 ~ 240V，50Hz/60Hz
Standby consumption	< 0.5W
Maximum time delay Power On to sound an image	30sec
Installation
Stand area (Width / Depth)	1447×375mm
Wall mount dimensions (Horiz x Vert)	400×300mm
Wall mount, screw thread	M6/10mm
VESA compliance	Yes
Detachable power cord	Yes
Power cord length	155cm
Accessories
Remote controller (Technology / Part number )	IR /EN2J3630H
Battery (size / quantity)	AAA / 2
User manual (Available online) / Quick setup guide (Print)	1 / 1
Warranty [In User manual \| In separate sheet]	In separate sheet
Skype camera (Qty / Part number)	–
3D glasses type [Passive \| Shutter] / Link [RF \| IR \| BT]	–
3D glasses (Qty / Part number)	–
Dimensions
Dimensions with stand (W x H x D)	1577×953×375 mm
Dimensions without stand (W x H x D)	1577×883×84 mm
Carton box dimensions (W x H x D)	1765×1075×211mm
Net weight (with stand / without stand)	21.5 /21 kg
Gross weight	30kg
Container load (20ft / 40ft / 40ft HC)	70/144/144
Licensing and certification
EMC- Electromagnetic Compatibility	Yes
CB- Electrical safety	Yes
HDMI	Yes (Hisense internal test)
Dolby Digital	Yes
MEPS- Test report	No
ROHS	No
Electrical safety conformity for Australia	Yes
Documentation
Panel specifications	Yes
Initial specifications (input form)	Yes
Confirmed product specifications	Yes
List of DMP formats for audio and video	Yes (QSG)
(Required before purchase order)
Documentation
CB report and certificate	Yes
EMC report and certificate	Yes
Power cord, plug and connector Australian safety approval	Yes
